CNC Steel Sheet Press Brake Machine

The CNC steel sheet press brake machine consists of a frame, a workbench, a precision slide, a powerful main cylinder, an intelligent rear block, and an advanced CNC system. This machine is designed for bending steel and stainless steel plates, it is widely used in steel, metal, or stainless steel plate processing such as metal cabinet processing, architectural decoration, and electric elevator surface packaging.





High-precision bending capability

This CNC bending machine uses CAD, CAE, and CAM software for precise calculation and simulation analysis to ensure that the structural strength and rigidity of each component are optimized. At the same time, the high-precision CNC system can monitor and adjust various parameters in the steel plate bending process in real-time, such as bending angle, pressure, etc., to ensure that the bending accuracy reaches 0.5mm/m.



Efficient production

The Press brake machine has a wide processing area of ​​1500mm x 3000mm, which can handle large steel plates and meet diversified production needs. At the same time, its operating speed is as high as 4000mm/min, which increases production efficiency by more than 30% compared with traditional bending machines.



Strong shock resistance

The Press brake machine adopts a full steel frame welded structure, making the machine more sturdy and durable. At the same time, all key components are made of high-quality materials, such as high-strength alloy steel, wear-resistant alloy, etc., to ensure the long-term reliability of the machine.



Compatibility

By equipping the AI-driven CNC controller, the Press brake machine is compatible with multiple file formats such as DST, DWG, DXF, LAS, and HPRXD, and achieves seamless integration with multiple software systems. At the same time, the CNC system also has intelligent recognition and optimization functions, which can automatically adjust the processing parameters according to the file content, thereby ensuring the accuracy and efficiency of the processing process.













■ The CNC steel sheet press brake machine is designed by China's national standards: JB/T2257.2-92 "Technical Conditions for Plate Bending Machines" and GB/T14349-93 "Precision of Plate Bending Machines." All parts of this machine undergo computer graphics processing, computer element analysis, and computer-aided manufacturing. We utilize CAD, CAE, and CAM software for the structural design of the machine, fully ensuring adequate structural strength and rigidity for each component.

■The entire machine features a welded steel frame structure, resulting in a thick, highly rigid press brake with strong shock resistance and durability.

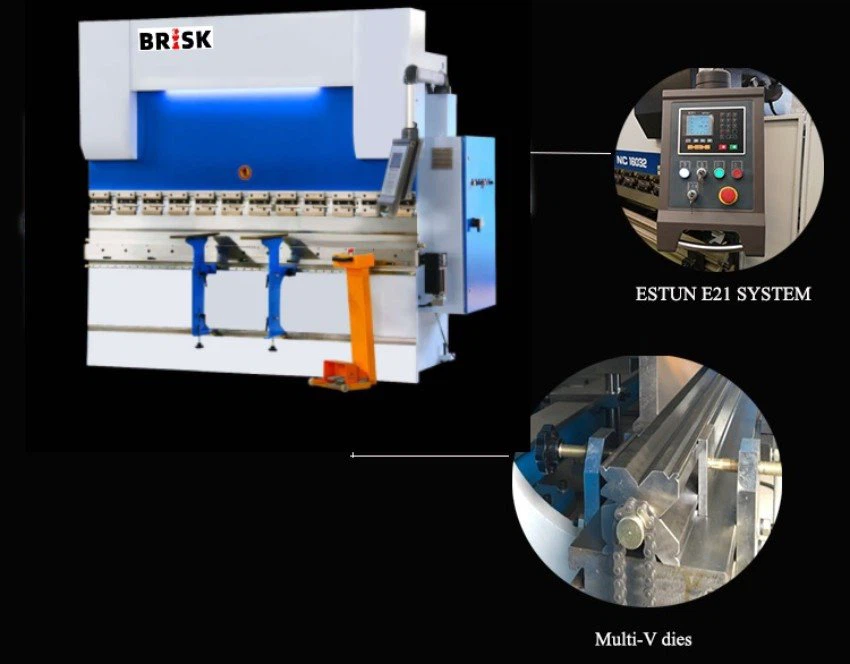

■ The mechanical structure of the machine primarily consists of a frame, a workbench, a ram, a main oil cylinder, and a rear stopper. With impeccable design and refined manufacturing processes, we can effectively guarantee the accuracy of the machine's manufacturing and usage.







* Schneider Electric for the cabinet

* Siemens motor made in Germany

* Servo motor and servo drive- Estun for CNC press brake machine

* Kacon foot switch.

* Merkel sealing ring made in Germany

* Quick clamps.

* EMB casing tube made in Germany

* Bosch Rexroth valve bolck

* Hiwin ball screw, linear guide rails, back stopper -Taiwan, China

* Fagor grating ruler made in Germany

* Bosch Rexroth oil pump made in Germany.







NANTONG BRISK toolings have several types of bending such as L, R, U, Z, etc. The main use of the upper die is different angles such as 90°, 88°, 45°, 30°, 20°, 15°, etc. The lower die has 4~18V different groove width double and single groove, and R lower die, sharp angle lower die, press flat die, etc. The machine's upper and lower dies are divided into segments: the upper die segments are generally 300mm, 200mm, 100mm, 100mm, 50mm, 40mm, 20mm, 15mm, and 10mm, and the whole is 835mm. The lower die is generally divided into 400mm, 200mm, 100mm, 50mm, 40mm, 20mm, 15mm, 10mm, and the whole is 835mm.







Nantong Brisk CNC Co., Ltd is a leading professional manufacturer of CNC press brakes and CNC hydraulic guillotines, plate rolling machines located in Hai'an City, Jiangsu Province, close to the coastal highway, and 328 Provincial Highway, 204 National Highway, the new long and Ningqi railroad intersection, to Nantong Airport and Shanghai Airport traffic is very convenient.
The company has the top engineering and sales team, Has over 100 employees boasting an annual figure that exceeds USD 5,000,000.00, and currently exports 80% of our production worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.







If you are interested in our products, please contact us to get more details.
