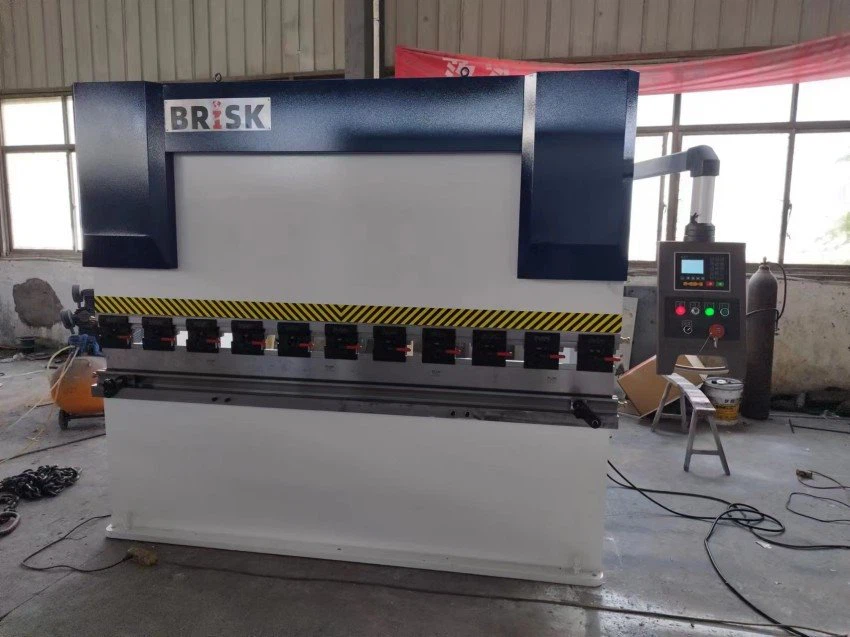

Hydraulic press brake has NC press brake and CNC press brake with precision backgauge, servo motor, safety protection, fast clamp, ball screw and linear guide. All good famous brands such as from Germany, USA, Holland, Italy Brand parts.
We accept customized as the bend thickness and length.
Technical Parameters
Model: | Unit | 125T/4000 |
| Control Axis | X+Y+V -axis | |
| Bending force | Ton | 125 |
| Bending length | mm | 4000 |
| Distance between columns | mm | 3100 |
| Stroke | mm | 300 |
| Throat Depth | mm | 320 |
| Open Height | mm | 385 |
WORKING SPEED: | ||
| Fast Speed | mm/sec | 90 |
| Working Speed | mm/sec | 9 |
| Return Speed | mm/sec | 90 |
CAPACITY: | ||
| Hydraulic oil standard | / | #46 Antiwear hydraulic oil |
| Overall dimensions | mm | 4200*1780*2550 |
| Main Motor Power | kw | 11 |
| Power supply | 380V/50HZ/3PH or 240V/60HZ/3PH | |
Instruction
The structure is made of steel plates with sufficient strength and rigidity. The hydraulic drive prevents serious overload running accidents caused by changes in sheet thickness or improper selection of the lower die cavity. In addition,machine is good at stable working, easy operation, safety and reliability. The connection part with the upper die is equipped with a compensation device, which can compensate for the deflection of the table and slider during bending, ensuring high working accuracy.
More Details
Fast clamp
Quick-release and change punching from the press brake. suit for segmented punch working with small pieces plate.
Siemens Motor
Siemens motor is made in Germany, low noisy and long lifetime.
Electric Cabinet
Main electric parts: Schneider
Adjust and control the programs
Hydraulic Valve
Rexroth from Germany
Adjusting and Controlling the switches and have releasing pressure function
E21 NC Control System
E21 controller cantilever device, referring to machine engineering design principle.
Backgauge
Backgauge equipped with Taiwan HIWIN ball screw polished rod structure
Shipping and Packing
Nantong Brisk products are exported to more than 50 countries and regions such as Europe, South America, U.S.A, Southeast Asia,etc.
Our Company
Nantong Brisk CNC Co., Ltd is located in Libao village, Hai'an County, Jiangsu Province, close to the coastal highway, intersecting with Provincial Highway 328, National Highway 204, Xinchang Railway and Ningqi Railway, with convenient transportation to Nantong Airport and Shanghai Airport.
The company specializes in the production of CNC press brake, hydraulic shears, steel plate rolling bending machine, hydraulic press machne, roof tile roll forming machine and other hundreds of varieties of sheet metal processing machinery. The products are suitable for automotive, aerospace, nuclear power, chemical, shipping and many other industries and fields, selling well in more than fifty countries, such as to the United States, Europe, Canada, South America and other countries.
FAQ
Q: Are you the manufacturer or trading company?
A: We are the experienced manufaturer and also trading by ourselves.
Q: Whats the price ?
A: We are factory, that means we can control the cost. We will offer you the competitive price and best quality machine.
Q: Do you have CE certificate?
A: Yes, we have CE certificates.
Q: Whats the payment terms?
A: We accept T/T payment terms, 30% deposit and 70% before shippment.
Q: Whats the warranty?
A: Our warranty for the main structure is 5 years and spare electric parts is 12 months, beyond the warranty, we can offer you technical supply and trchnical guide for the machine.
